Case Study - Double side Extension from Planning to Completion - Rainham

Extension for a 2 Bedroom to 4 Bedroom House (Rainham)

This is a timeline of pictures showing what was done to complete this 2 storey extension

We created the Plans and Lloyd Lundie Building Contractors ltd carried out the works

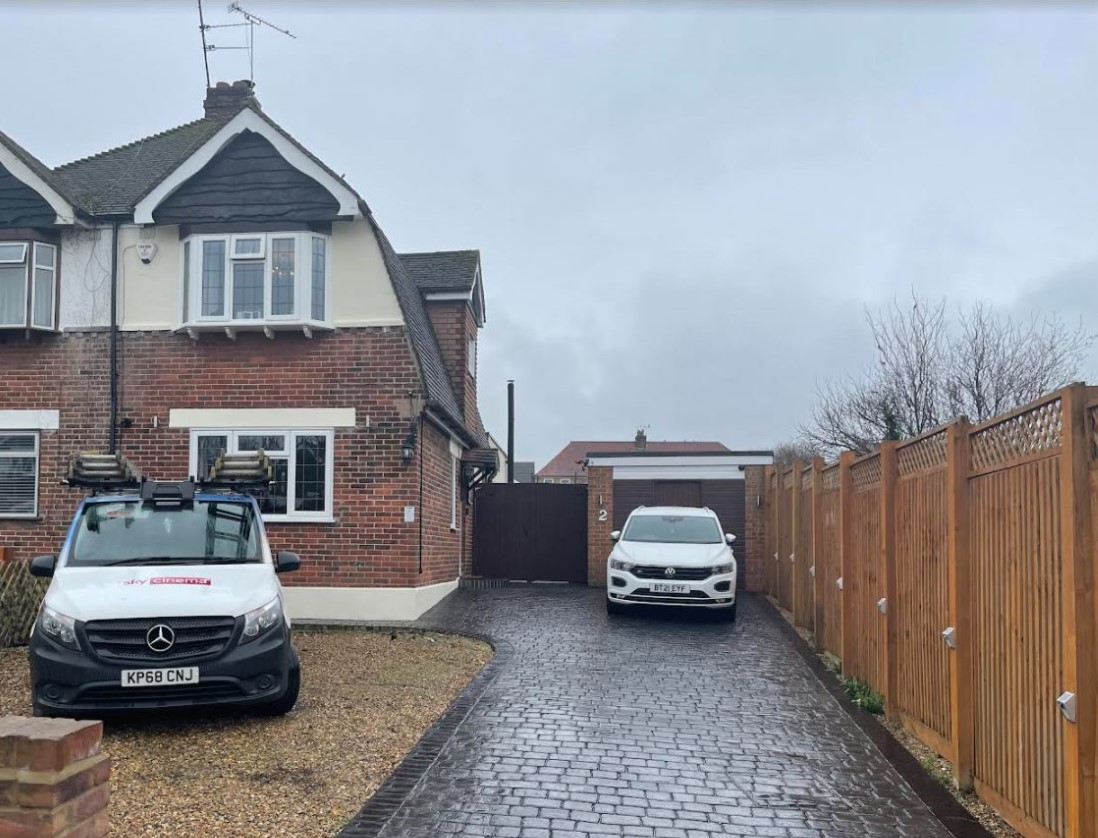

We surveyed the site to get the exising house into our software

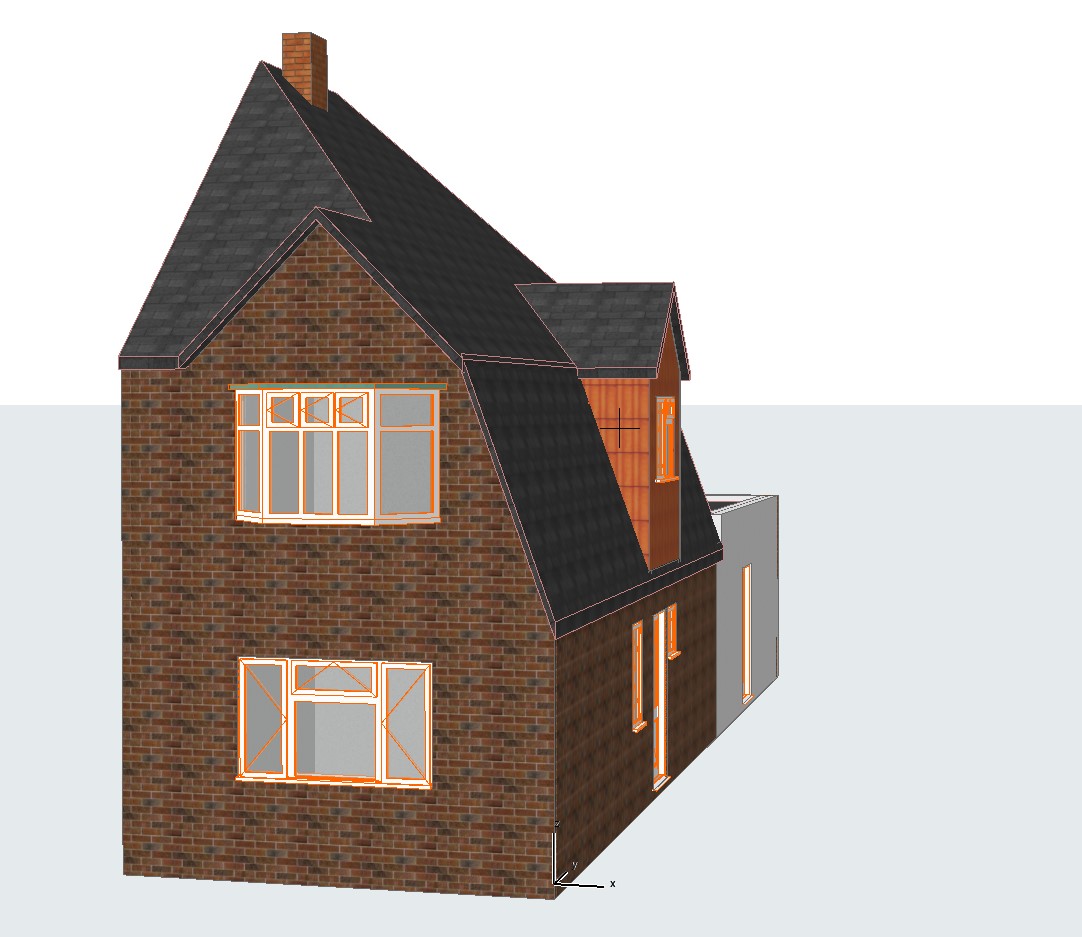

 Existing 3D Image

Existing 3D

Planning Drawings (Stage 1)

We designed the plans for a 2 storey side extension.

Downstairs this added a Cinema Room, Pantry and a larger Hallway

Upstairs this added 2 bedrooms and a family bathroom making it a 4 bedroom family home

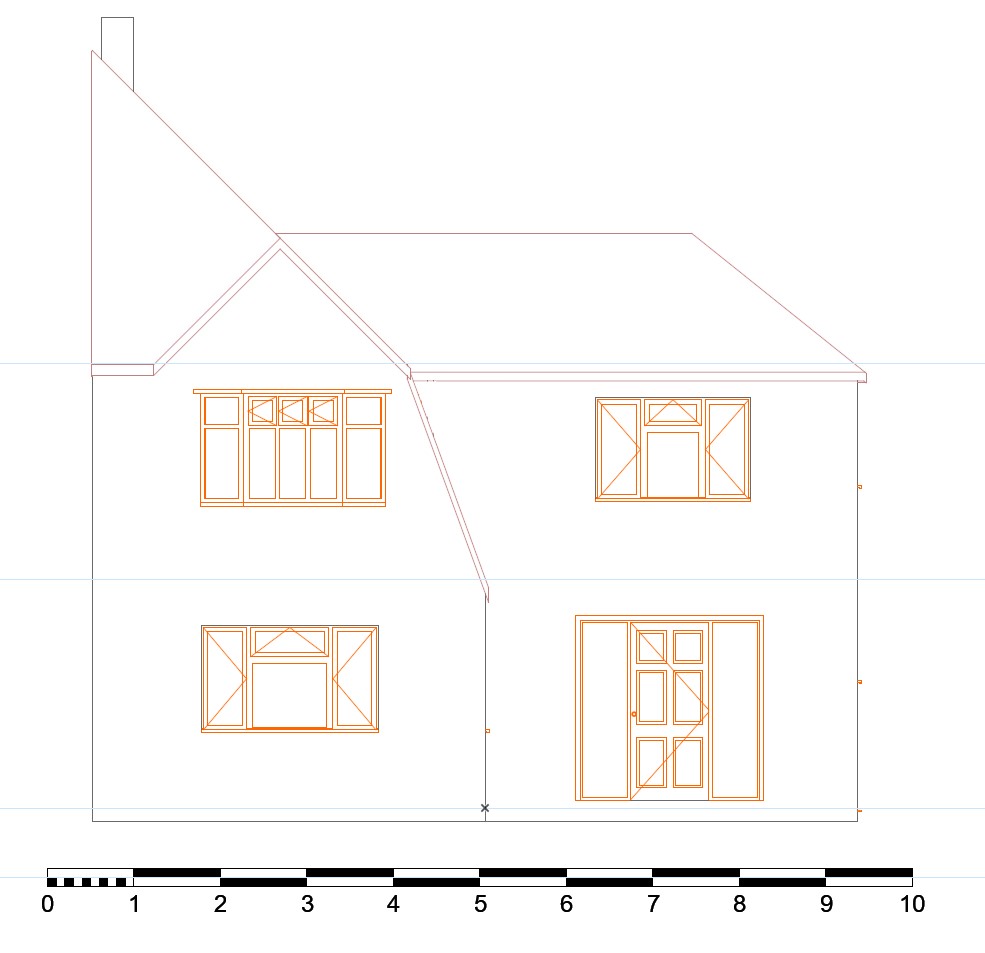

Front Elevation

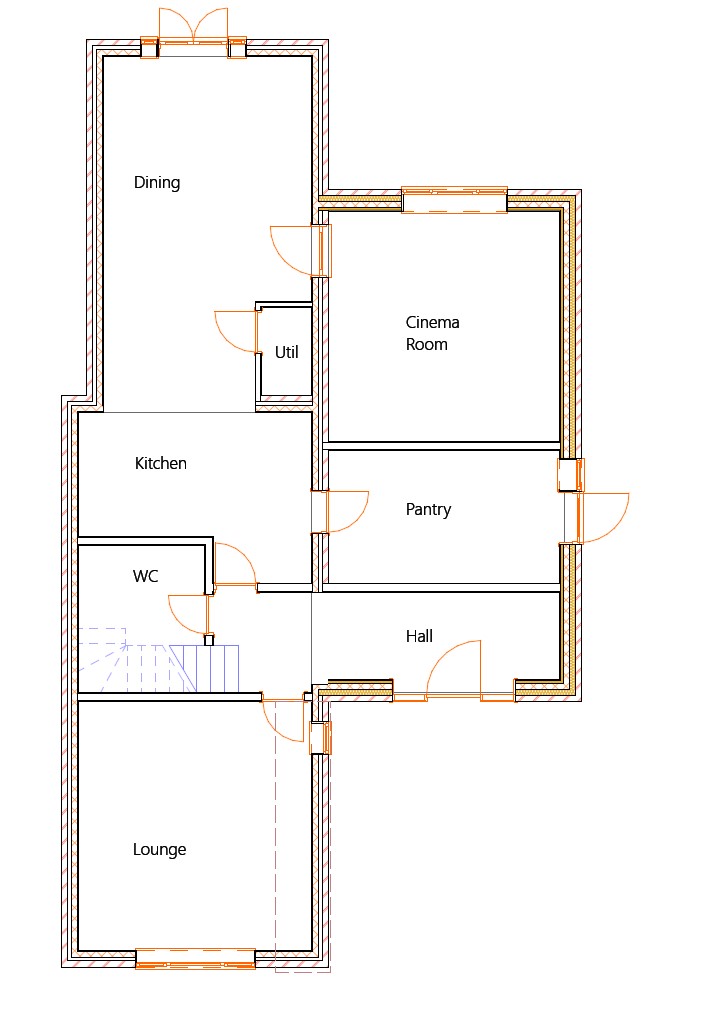

Plans Proposed

3D Proposed

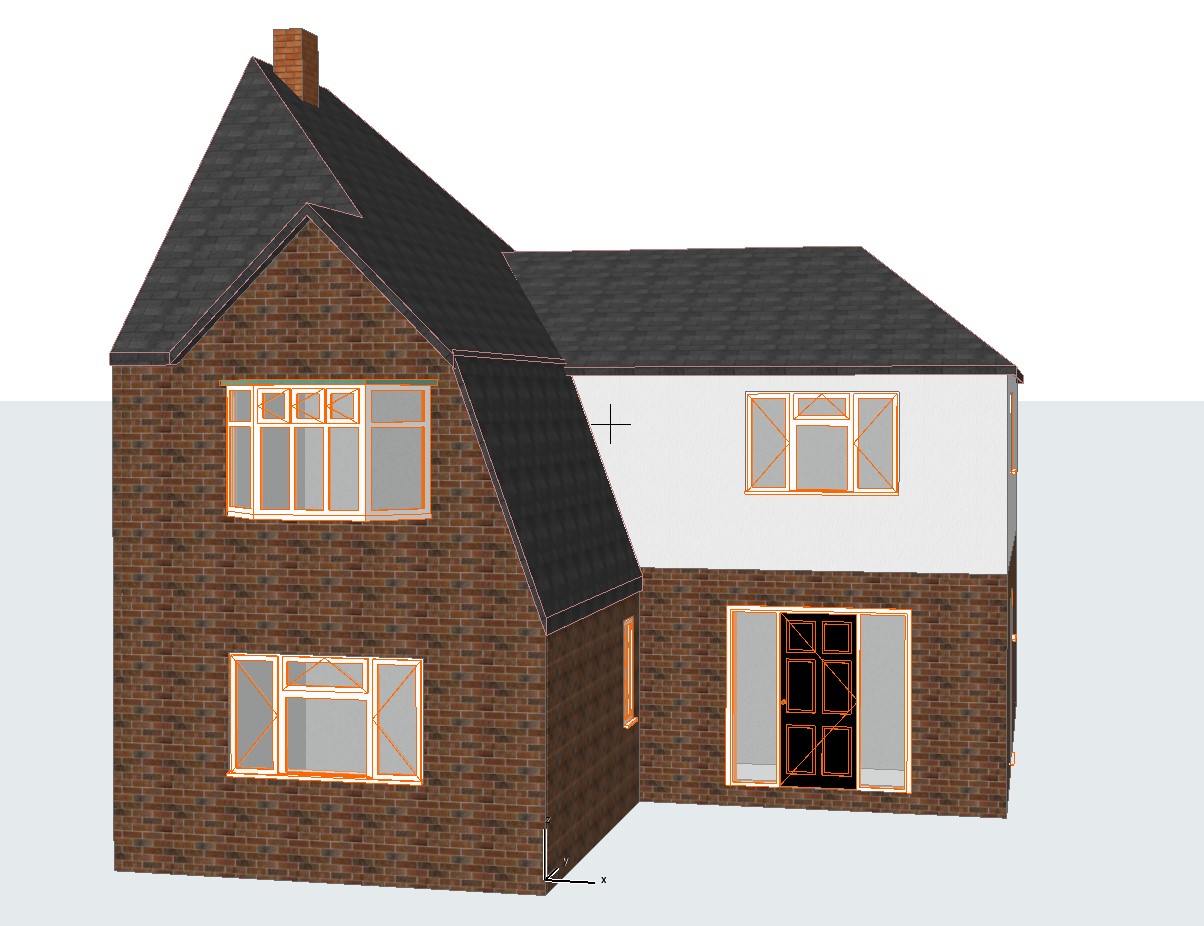

Proposed 3D

We submitted the Planning Application for this 2 storey side extension

Planning permission was granted by Medway Planning

Building Regs Drawings (Stage 2)

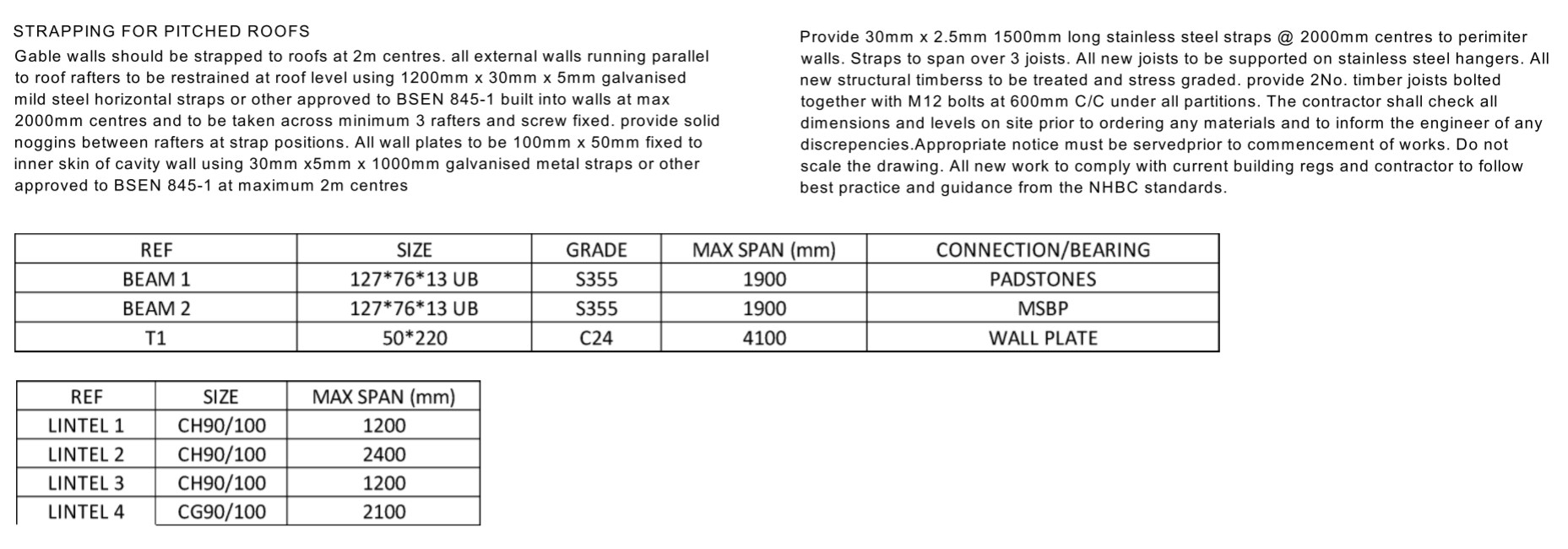

We liaised with LG Design who created the structural calculations

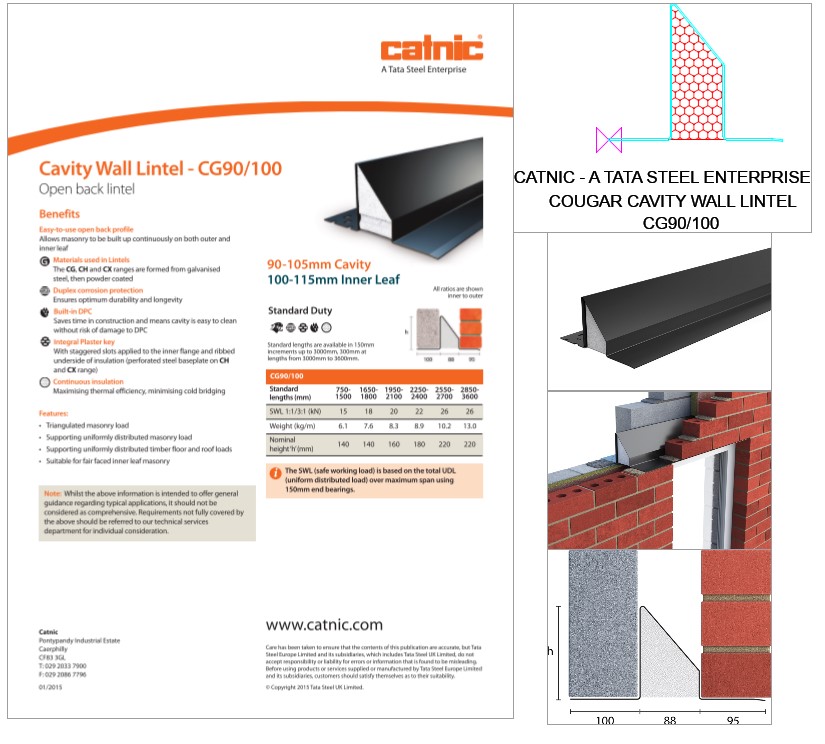

Lintel Details

Next we created the Stage 2 Building Regs Drawings (how to build) Plans

The Calcs and Building Regs Drawings were then submitted to STGBC

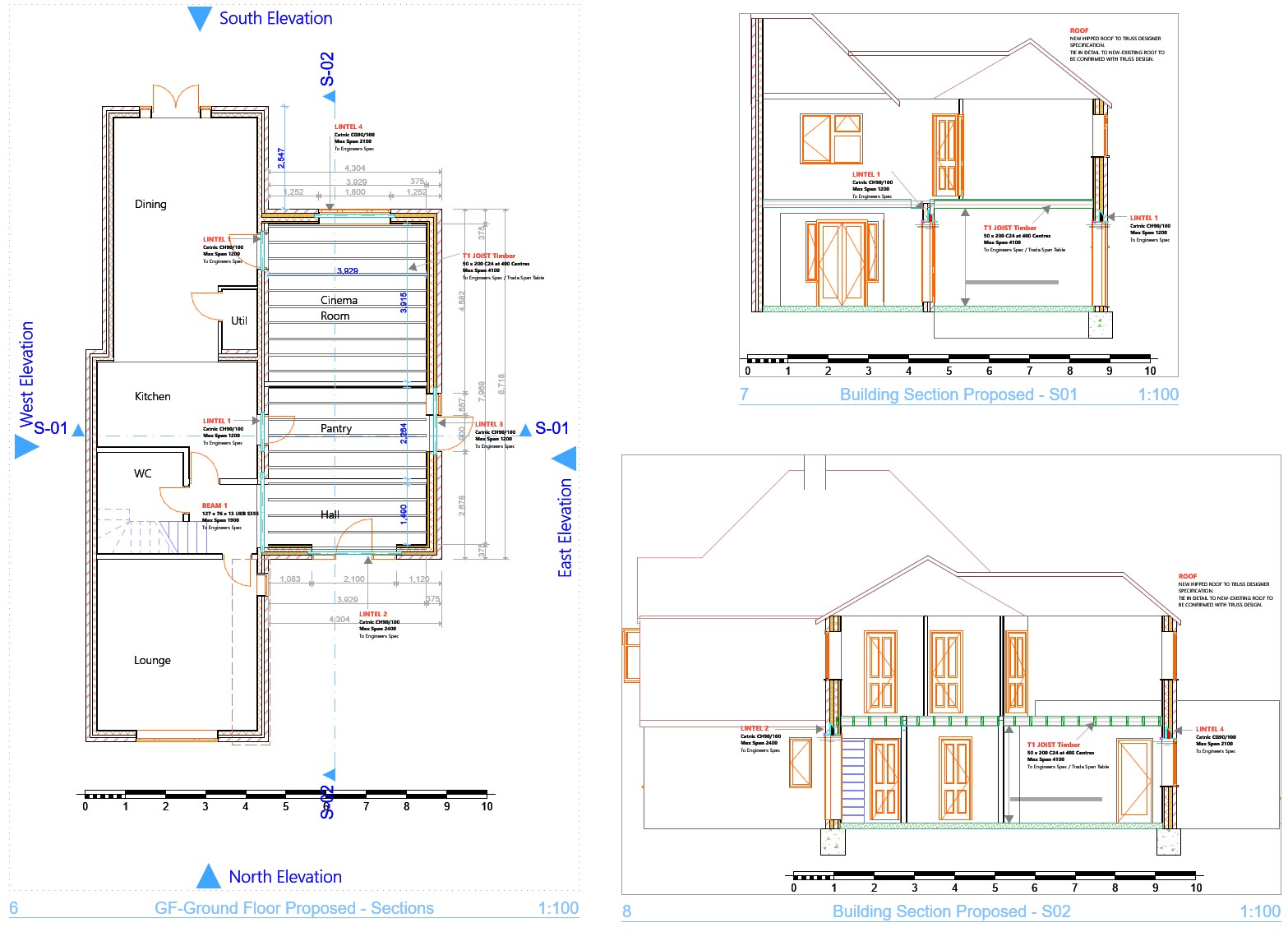

Working Plans

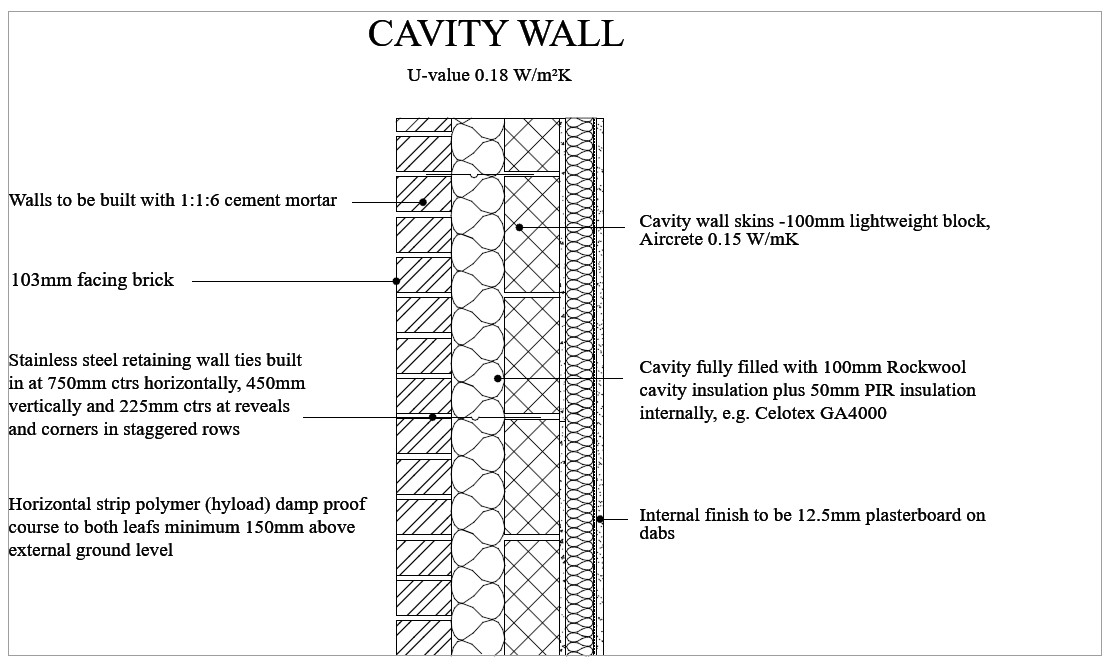

Cavity Wall

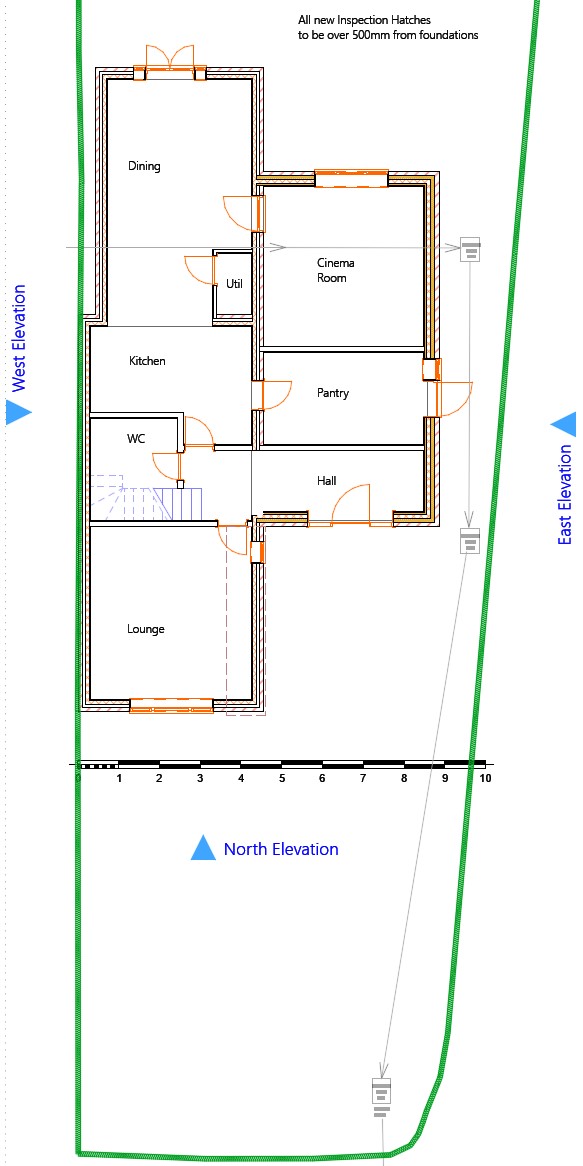

Drainage Plans

Drainage Plans were created and submitted to Southern Water for a Build Over agreement

This was needed to move an inspection hatch and divert the shared drain

drainage plans

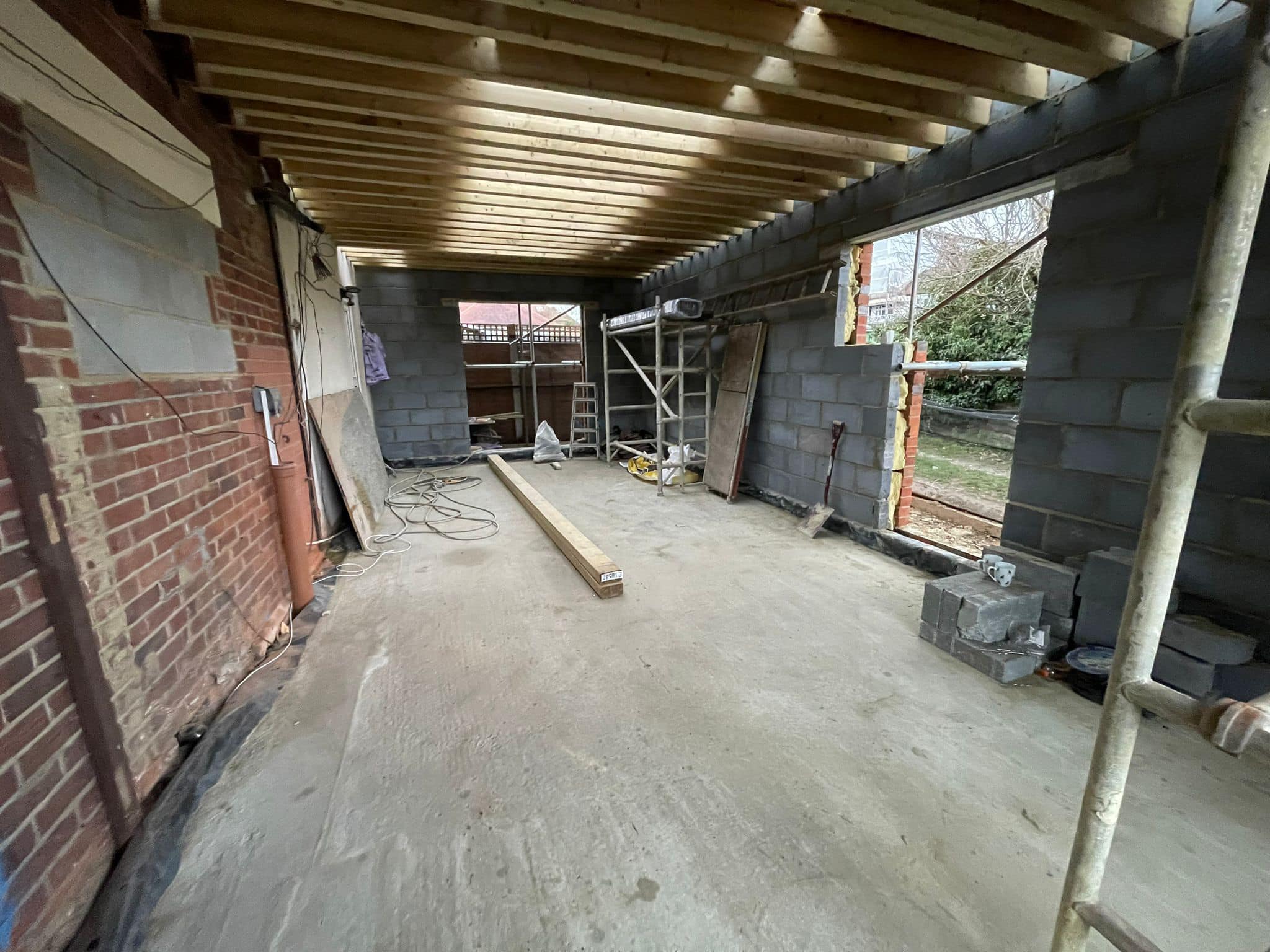

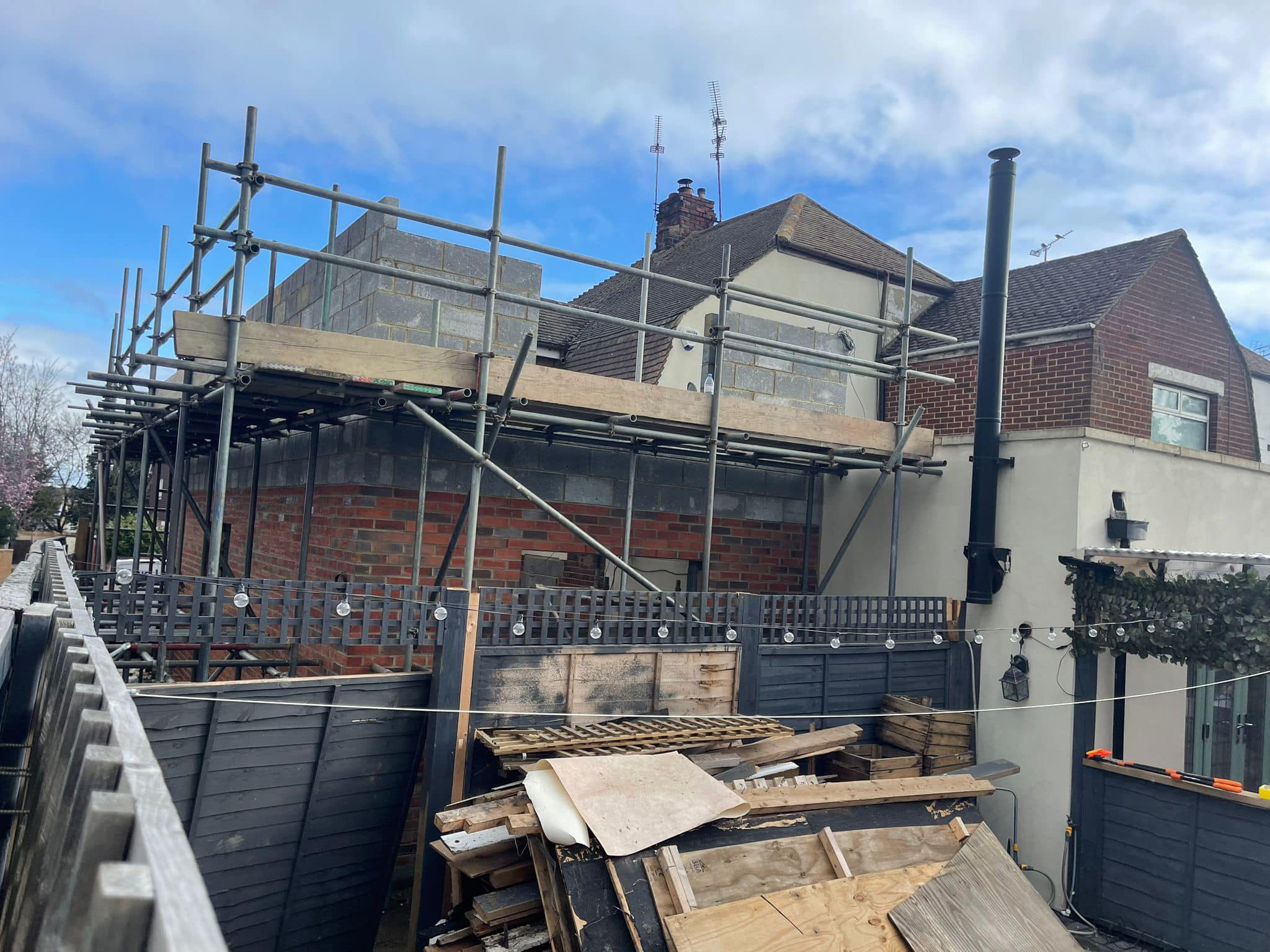

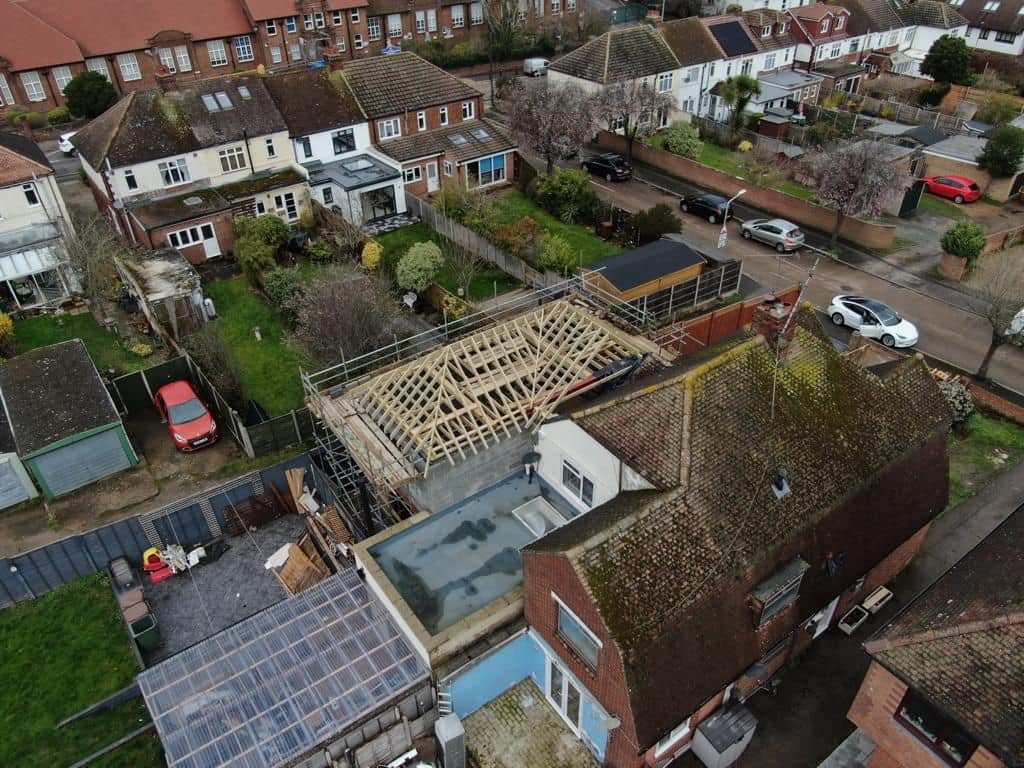

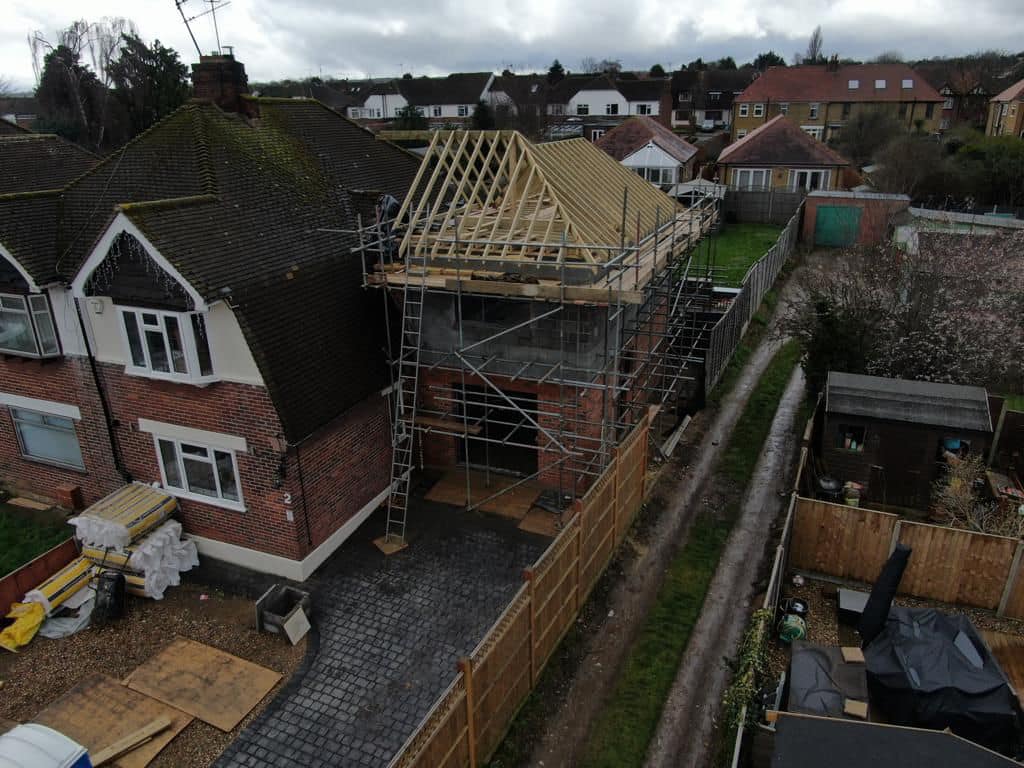

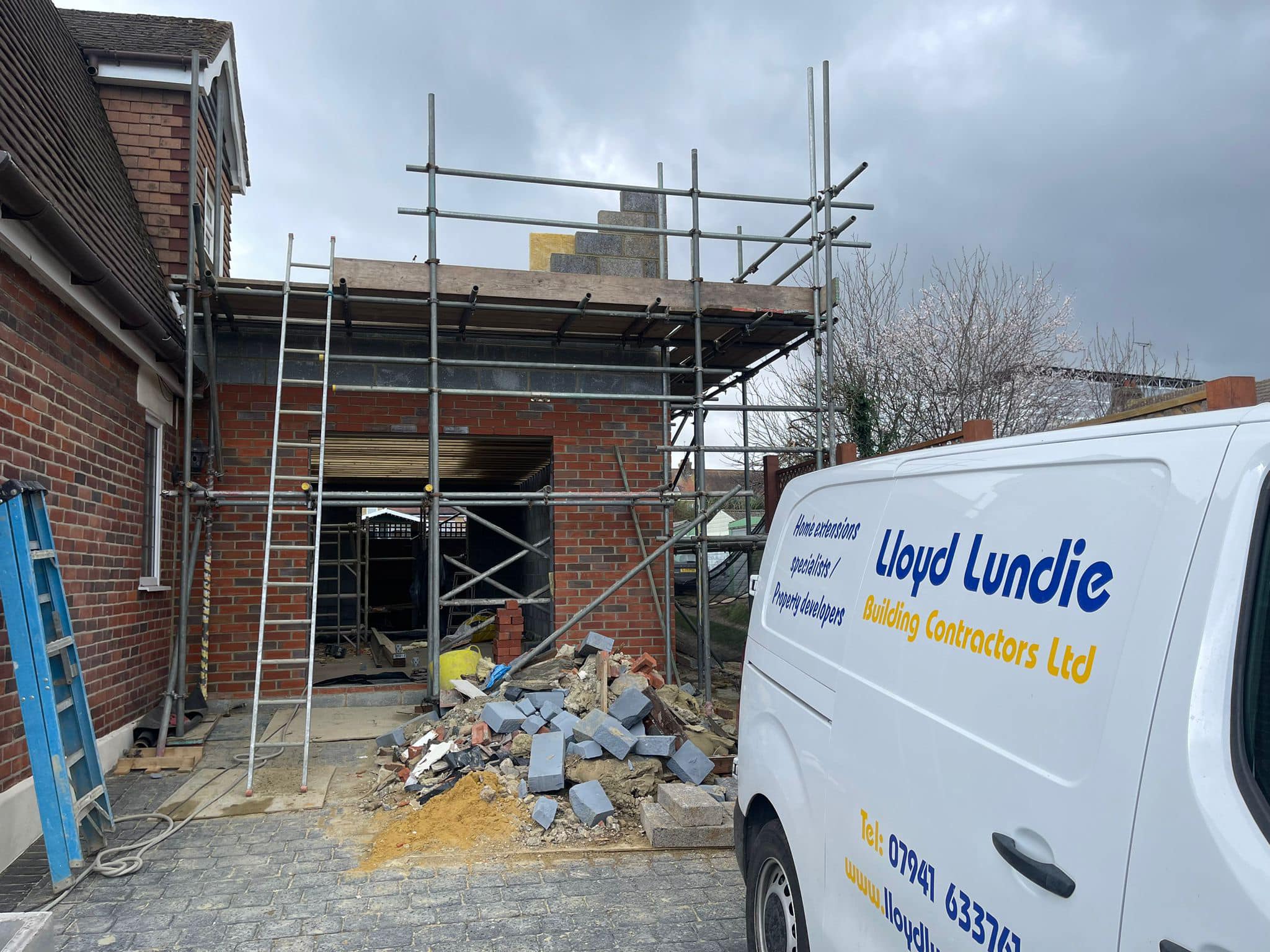

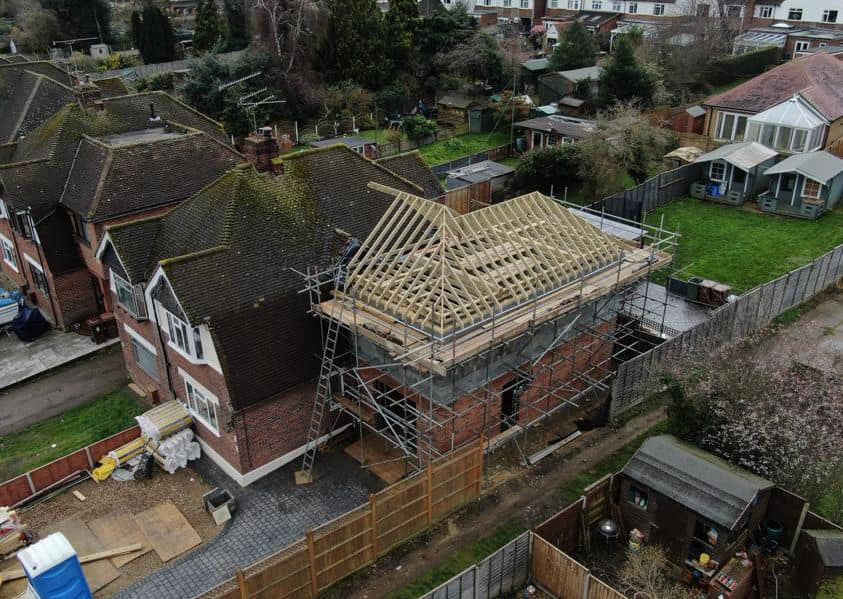

Works Underway

Lloyd Lundie Building Contractors ltd was commissioned to do the work

See some of their pics of the build below

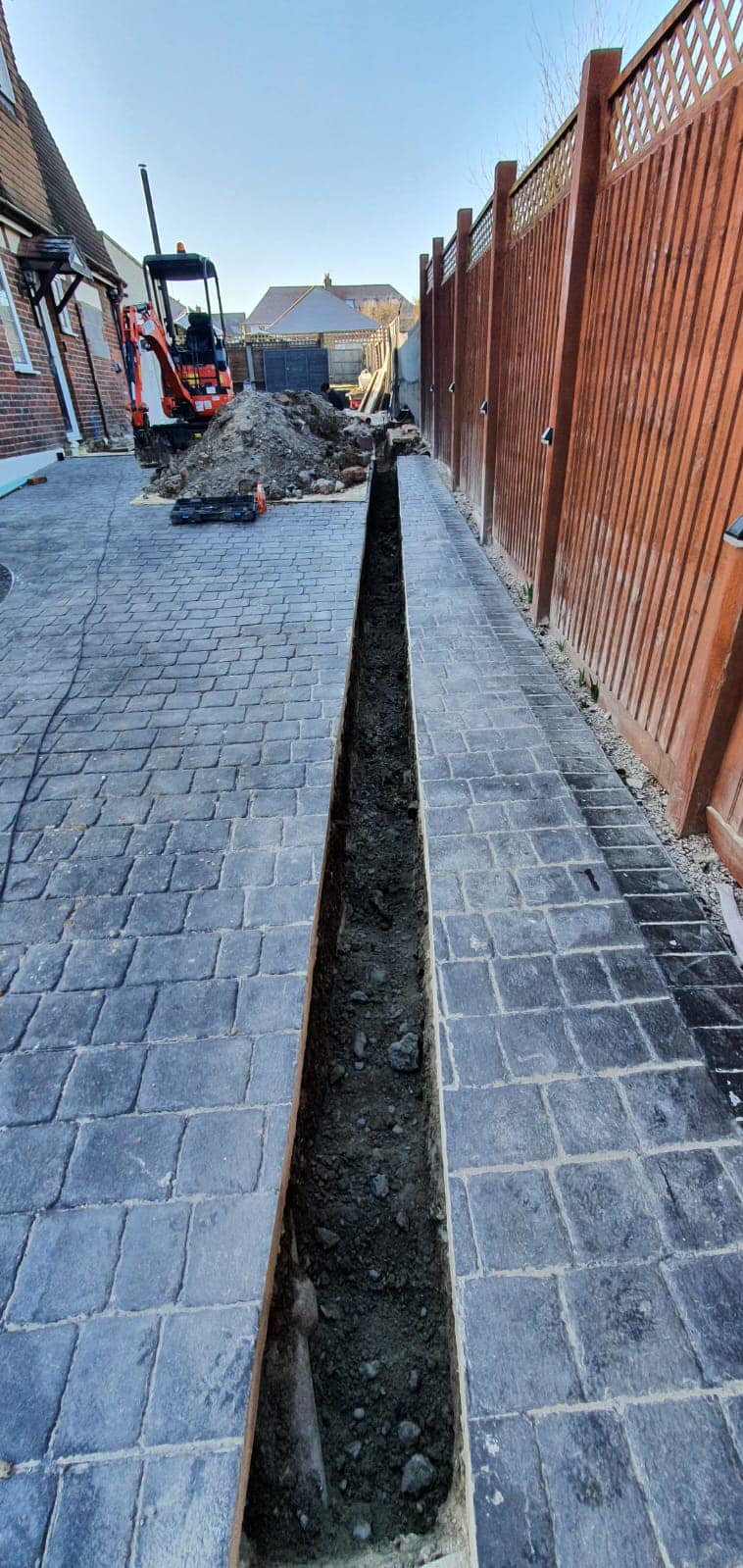

drain 1

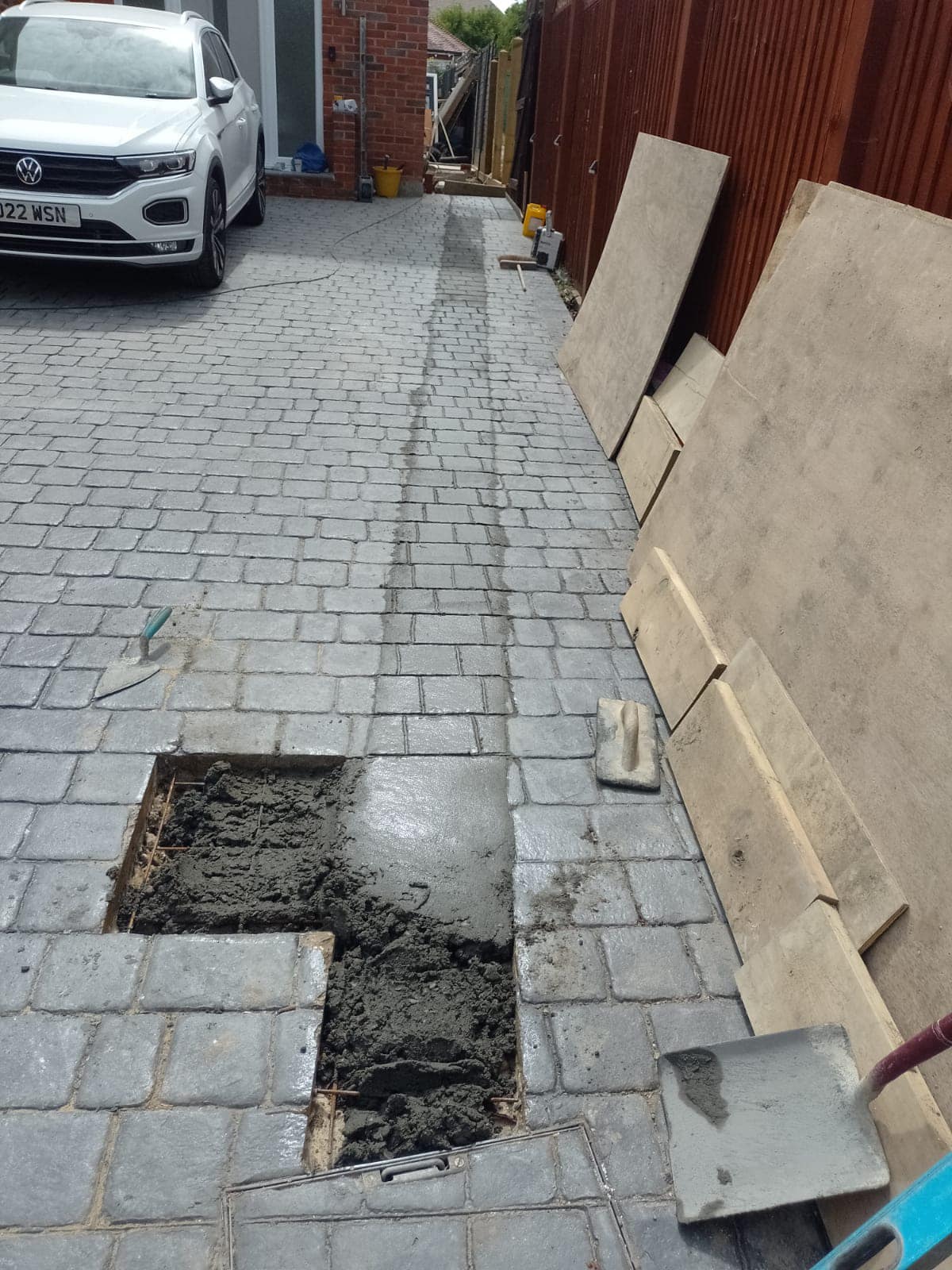

Drain 2

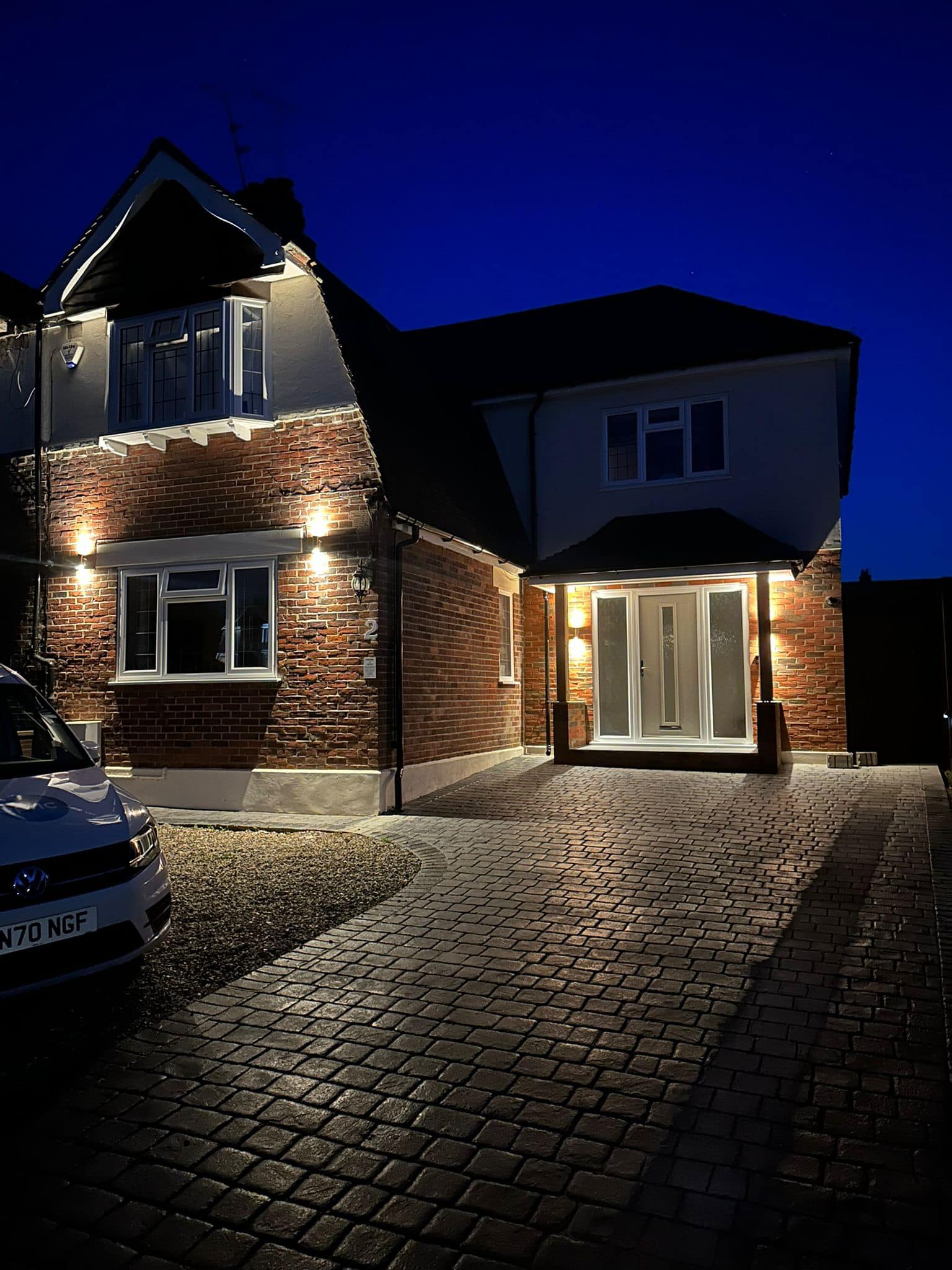

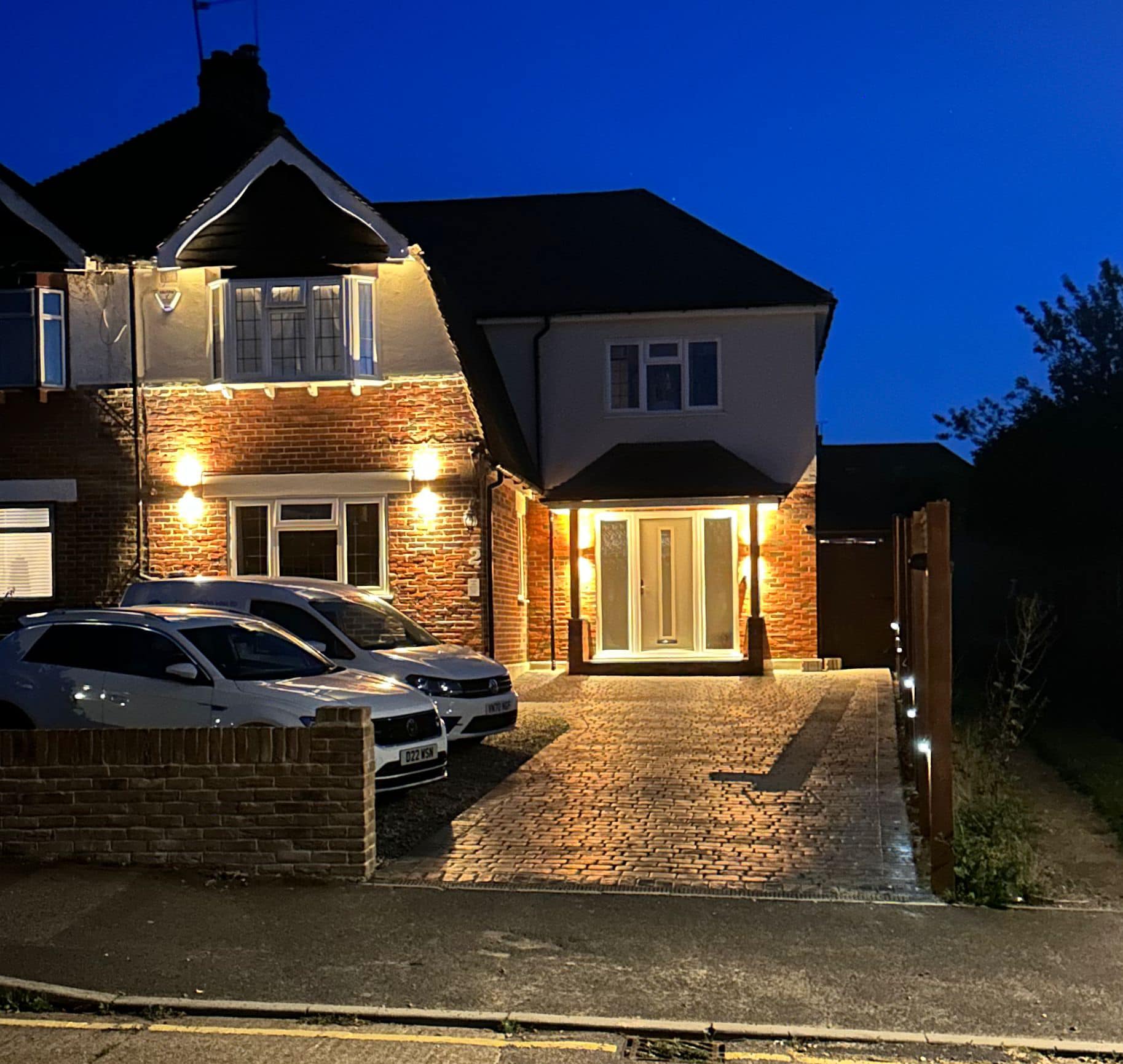

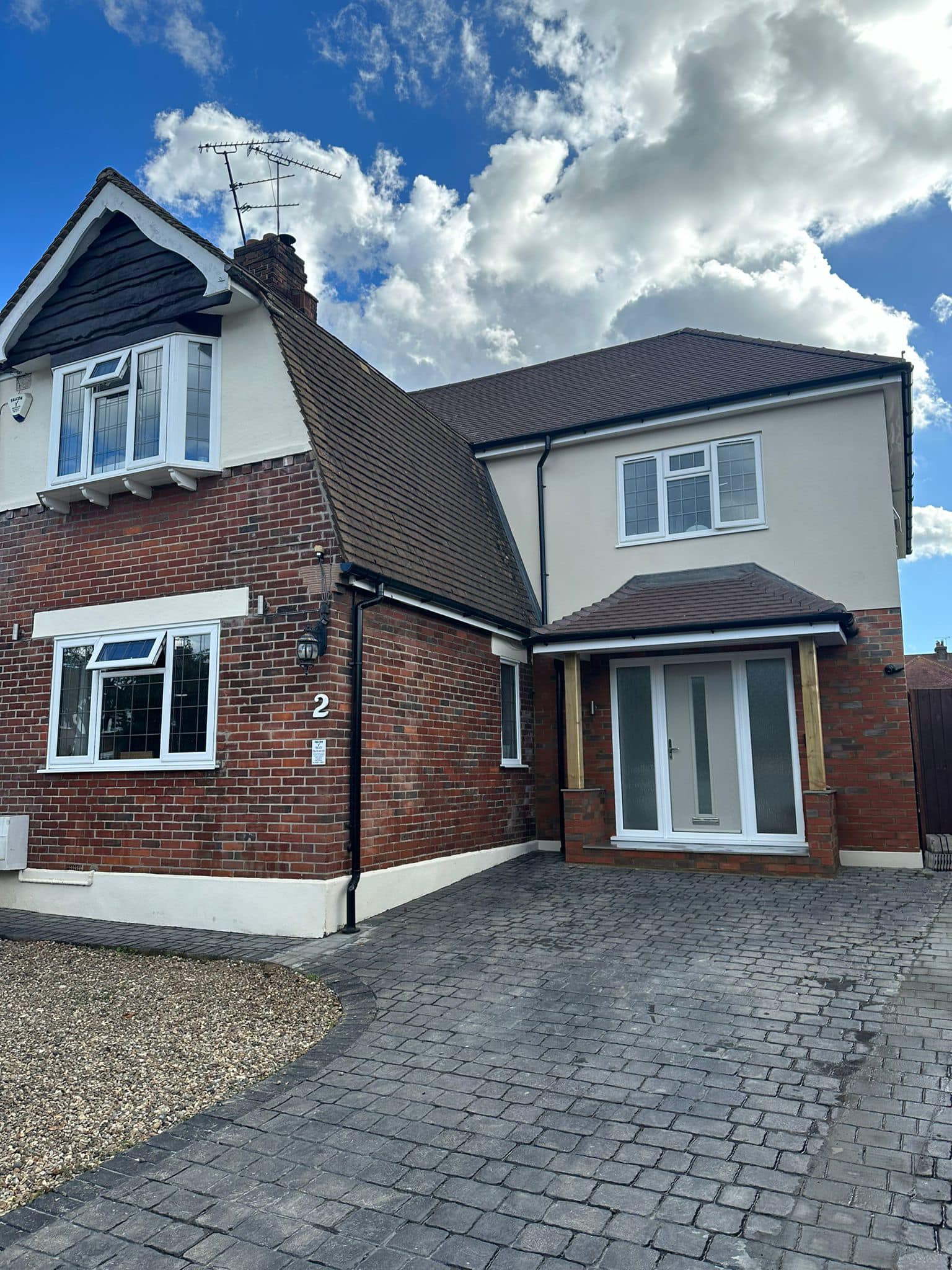

Finished Build & Happy Client

Lloyd Lundie Building Contractors ltd  said

"Absolutely love the transformation of this property in Rainham, Kent

It’s a massive home now with all the space a growing family willneed "
